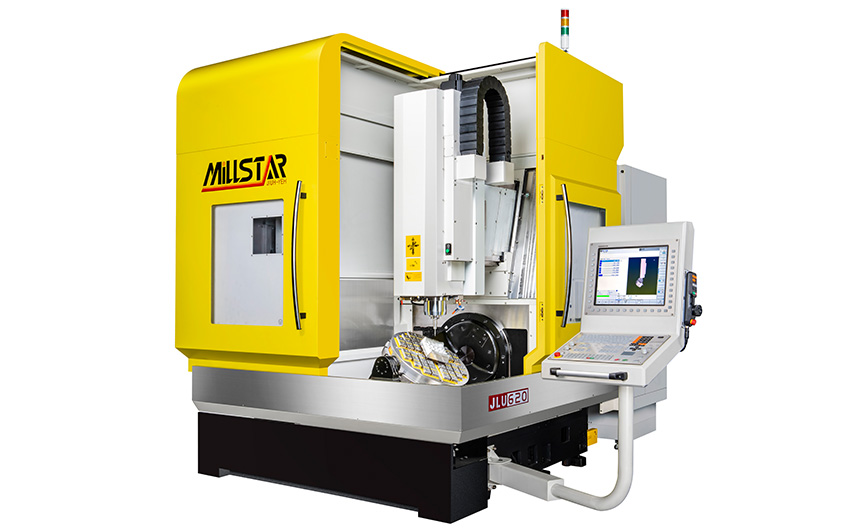

JLU-620
5-axis horizontal machining center designed for high-speed 5-axis simultaneous machining for complex parts, this 5-axis HMC machine is ideal for various industries, such as mold and die, automotive parts, aerospace parts, 3D complex parts, medical equipment, and high precision parts.
- Traveling column structure for increased efficiency.
- X / Y / Z axes are mounted with heavy duty roller type linear guide ways.
- Tilting rotary table.
- 12,000 rpm direct drive spindle.
- #40 spindle taper (DIN / BT / CAT / HSK-63A).
- Optical encoders for B / C axes (optional).
- Table tilting angle (B axis):-40°~+110°
- Table rotating angle (C axis): 360° continuous rotation.
- B / C axes are driven by servomotors.
- Rapid traverse rates on X / Y / Z axes: 36 m/min.
| 型號 | JLU-620 |
|---|---|
| Work Table Diameter | 500/650 mm |
| Table Indexing | 0.001° |
| Max. Table Loading | 300 kg |
| X/Y/Z 3Axes Travel | 620×520×460 mm |
| X/Y/Z 3Axes Rapid | 36/36/36 m/min |
| B/C Axes Rapid | 25 rpm |
| B Axis Titling Range | -40 to 110° |
| Spindle Nose to Table Surface | 140-600 mm |
| Center Hold Size | Ø50H7×30 mm |
| T-slot/Pitch/Size | 5×14h7×18 mm |
| Spindle Speed | 12,000 rpm(DDS) |
| Spindle Taper | DIN-40/BT-40/CAT-40/HSK-63 |
| ATC | 32T |
| Max. Tool Length | 250 mm |
| Max. Tool Diameter | 76 mm |
| Max. Tool Weight | 7 kg |
| Contorller | HEIDENHAIN iTNC640 |
| Spindle Motor | QAN-200UH/260MH |
| X/Y/Z 3 Axes Motor | 6.5/5.1/6.5 kw (HEIDENHAIN) |
| B/C Axis Motor | 9/4.5 kw (HEIDENHAIN) |
| Machine N.W. | 8500 kg |
| Coolant Tank | 380 L |
| Machine Dimension(L×W×H ) | 4,210×2,580×2,910 mm |
| Power Requirement | 45 KVA |
| Air Source | 6 kg/cm² |
| 標準配備: | 選購配備: |
| 1. Heidenhain controller | 1. SIEMENS / FANUC controller |
| 2. Spindle speed 12,000 rpm,direct drive(DDS) | 2. Coolant through spindle (CTS) 20/30/50 bar |
| 3. Spindle taper #40 (DIN,BT,CAT) | 3. Programmable cutting coolant nozzle |
| 4. ATC-32 Tools | 4. Chip flushing system |
| 5. Heidenhain 3 axes linear scale | 5. Tool length measurement system |
| 6. Roller type linear guide way | 6. Workpiece measurement system |
| 7. Spindle oil cooler | 7. Air supply for clamping fixture |
| 8. Full enclosed splash guard | 8. CE standard |
| 9. Large table size 650 mm | 9. Air conditioner for electrical cabinet |
| 10. Z axis motor with brake system | 10. HSK-63A, 20,000 rpm spindle (Built-in type) |
| 11. B/C axis optical encoder | 11. 15,000 rpm direct driven spindle |
| 12. Chain type chip conveyor & Chip cart | 12. Software for carsh protection |
| 13. Heat exchanger for electrical cabinet | |
| 14. Oil skimmer | |
| 15. Transformer (Export only) |
